Faster, More Efficient, and Highly Adaptable Light Modulation
UltraSpeed V‑Modules

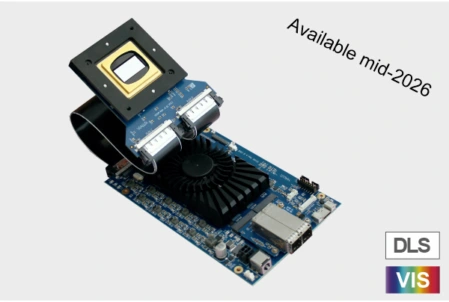

DLP® Subsystem V‑9803P VIS
Chipset: | DLPM980E & DLPC641 |
Wavelength: | VIS (440 – 650 nm) |

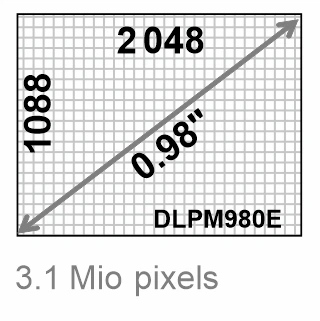

Resolution: | 2 048 x 1 088 |

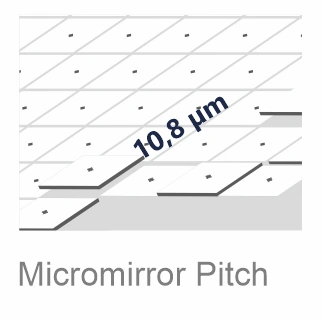

Micromirror Pitch: | 10.8 µm |
Max. Switching Rate (Full Array): | 5 000 Hz |
| Bit Depth | 4 Bit (16 Levels) |
Flexible Cable Connection: | 4 x 200 mm (7.9") |
Alternative: | 300 mm (11.8"), 400 mm (15.7") |
On-Board RAM Capacity (4-Bit Patterns): | 16 GB DDR4 (15 420) |
Alternative: | 32 GB DDR4 (30 840) |
PC Interface: | USB 3.0, PCIe Gen3 x8 |
Software: | ALP-5.1 Controller Suite (API) |
Camera Port (DLS ready): | 1x |
If you prefer alternative features, please select them in the form below. To receive a quote for the product with standard features, please fill out the contact data only and send us your request.
Your Product - Standard Features
UltraSpeed V-Module V-9803P VIS
- 4x 200 mm (7.9") flexible cable connection between DMD and controller board
- 16 GB DDR4 on-board RAM capacity
Datasheets of UltraSpeed V-Modules
