Maximum PC Transfer Rate and Maximum Framerate
UltraSpeed V‑Modules

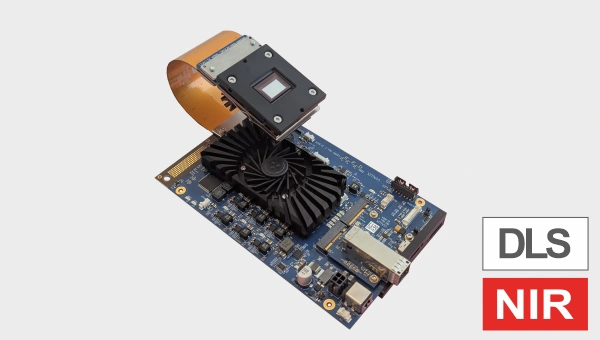

DLP® Subsystem V‑650L02 NIR
Chipset: | DLP650LNIR & DLPC410 |
Wavelength: | NIR (800 - 2 000) |
Resolution: | 1 280 x 800 (WXGA) |
Micromirror Pitch: | 10.8 µm |
Max. Switching Rate (Full Array): | 10 752 Hz |
Flexible Cable Connection: | 1 x 105 mm (4.1") |
Alternative: | 283 mm (11.1"), 573 mm (22.5") |
On-Board RAM Capacity (Binary Patterns): | 16 GB (111 848) |
Alternative: | 32 GB DDR4 (223 696) |
PC Interface: | USB 3.0, PCIe Gen3 x4 |
Software: | |
Camera Port (DLS ready): | 1x |
If you prefer alternative features, please select them in the form below. To receive a quote for the product with standard features, please fill out the contact data only and send us your request.
Your Product - Standard Features
UltraSpeed V-Module V-650L02 NIR
- 1x 105 mm (4.1") flexible cable connection between DMD and controller board
- 16 GB DDR4 on-board RAM capacity
Datasheets of UltraSpeed V-Modules
