Smallest Form Factor at Maximum Frame Rate
Hi-Speed V‑Modules

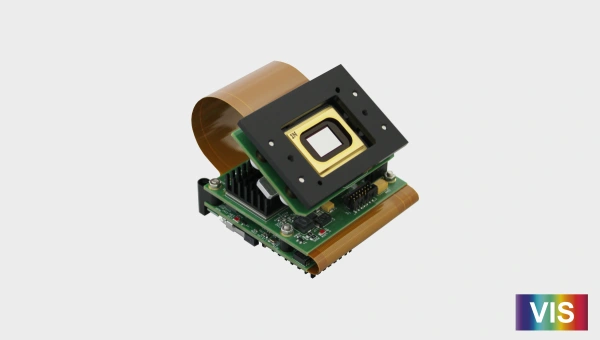

DLP® Subsystem V‑7000 VIS
Chipset: | Discovery4100 |
Wavelength (Option): | VIS (400- 700 nm) |
Resolution: | 1 024 x 768 (XGA) |
Micromirror Pitch: | 13.7 µm |
Max. Switching Rate (Full Array): | 22 727 Hz |
Flexible Cable Connection: | 1x 90 mm (3.5") |
On-Board RAM Capacity (Binary Patterns): | 2 GB DDR2 (21 845) |
Alternative: | 4 GB DDR2 (43 690) |
Software: | |
PC Interface: | USB 2.0 |
Camera Port (DLS ready): | N.A. |
If you prefer alternative features, please select them in the form below. To receive a quote for the product with standard features, please fill out the contact data only and send us your request.
Your Product - Standard Features
SuperSpeed V-Module V-7000 VIS
- 2 GB DDR2 on-board RAM capacity
Datasheet of Hi-Speed V-Modules
