Compact DMD Mounting and Controller Board Case
Mounting Solutions for DLP® Subsystems
DMD Mount and Controller Board Case - ViALUX LabKit

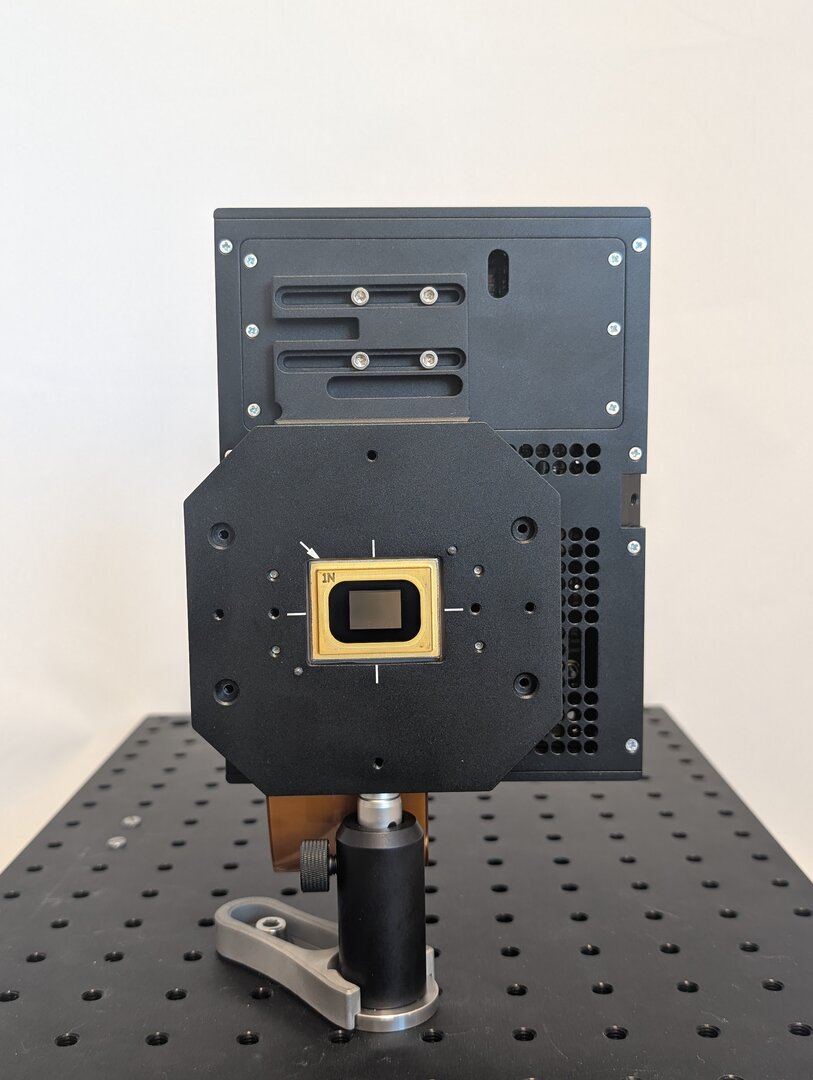

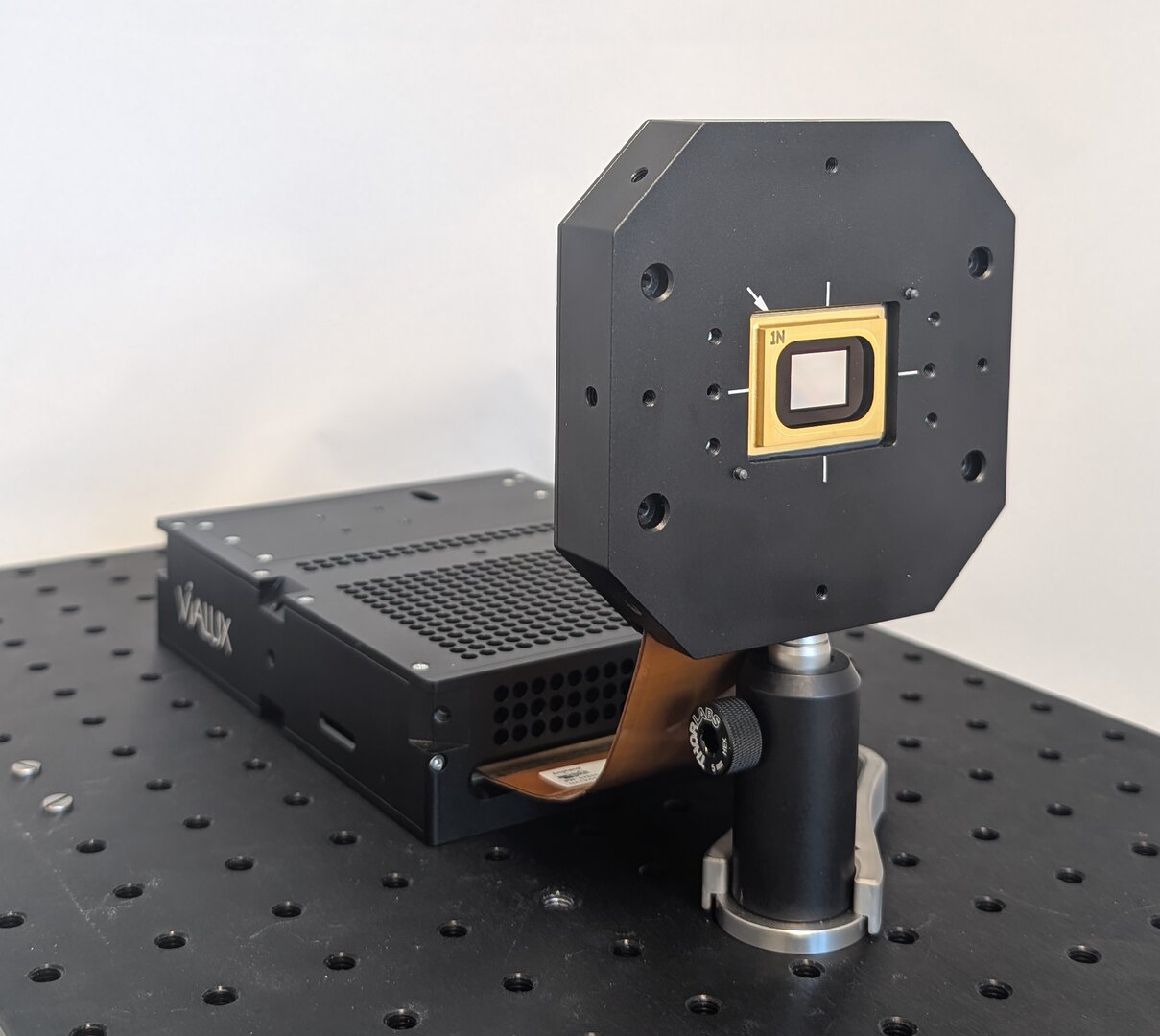

The LabKit consists of two separate modules, a DMD mounting and a controller board case specially optimized for DLP® Technology applications in a laboratory environment.
Application Example*

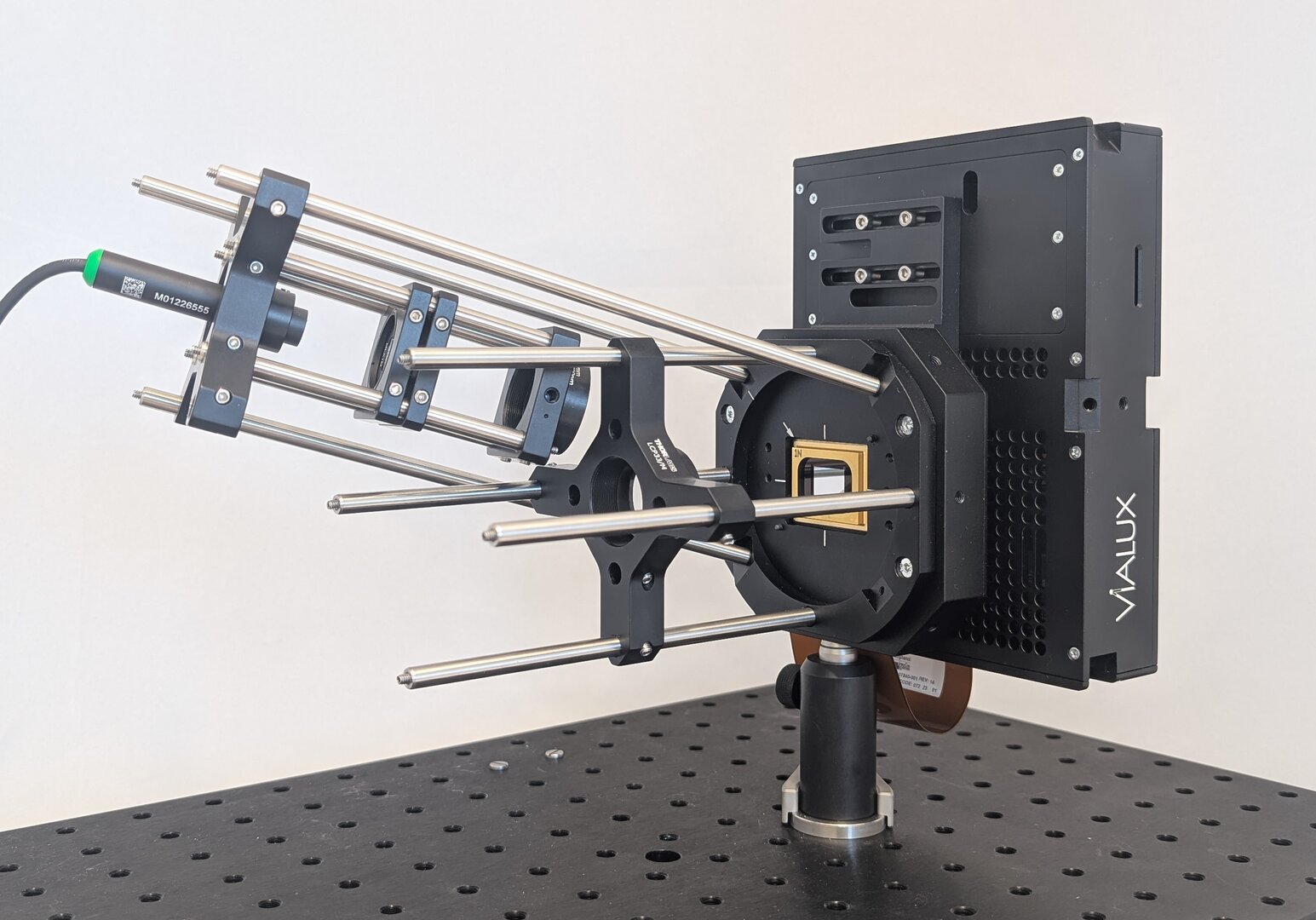

The DMD mounting comes with a modular adapter ring enabling flexible integration with 60 mm optical cage systems and provides 24° alignment of the DMD surface with respect to the incoming and reflected beams.
Key Advantages:
- Works with all Hi-Speed, SuperSpeed V-Modules, and UltraSpeed V-Modules – Supports the following DMDs: 0.7” XGA, 0.95” 1080p, 0.65” WXGA, 0.65“ 1080p, 0.9” WQXGA along with the matching controller boards
- Ready to use – Compatible with standard optical components for seamless integration

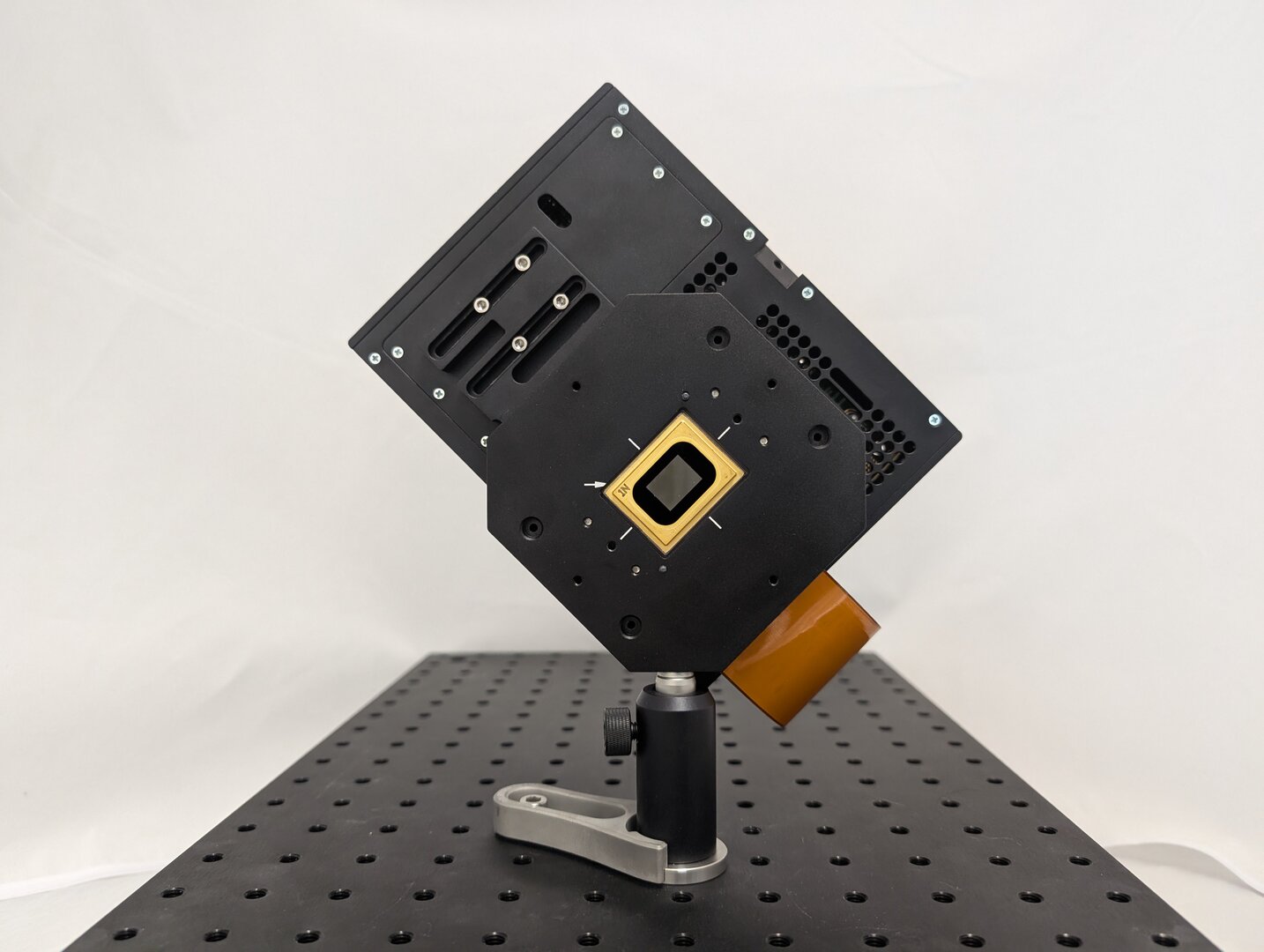

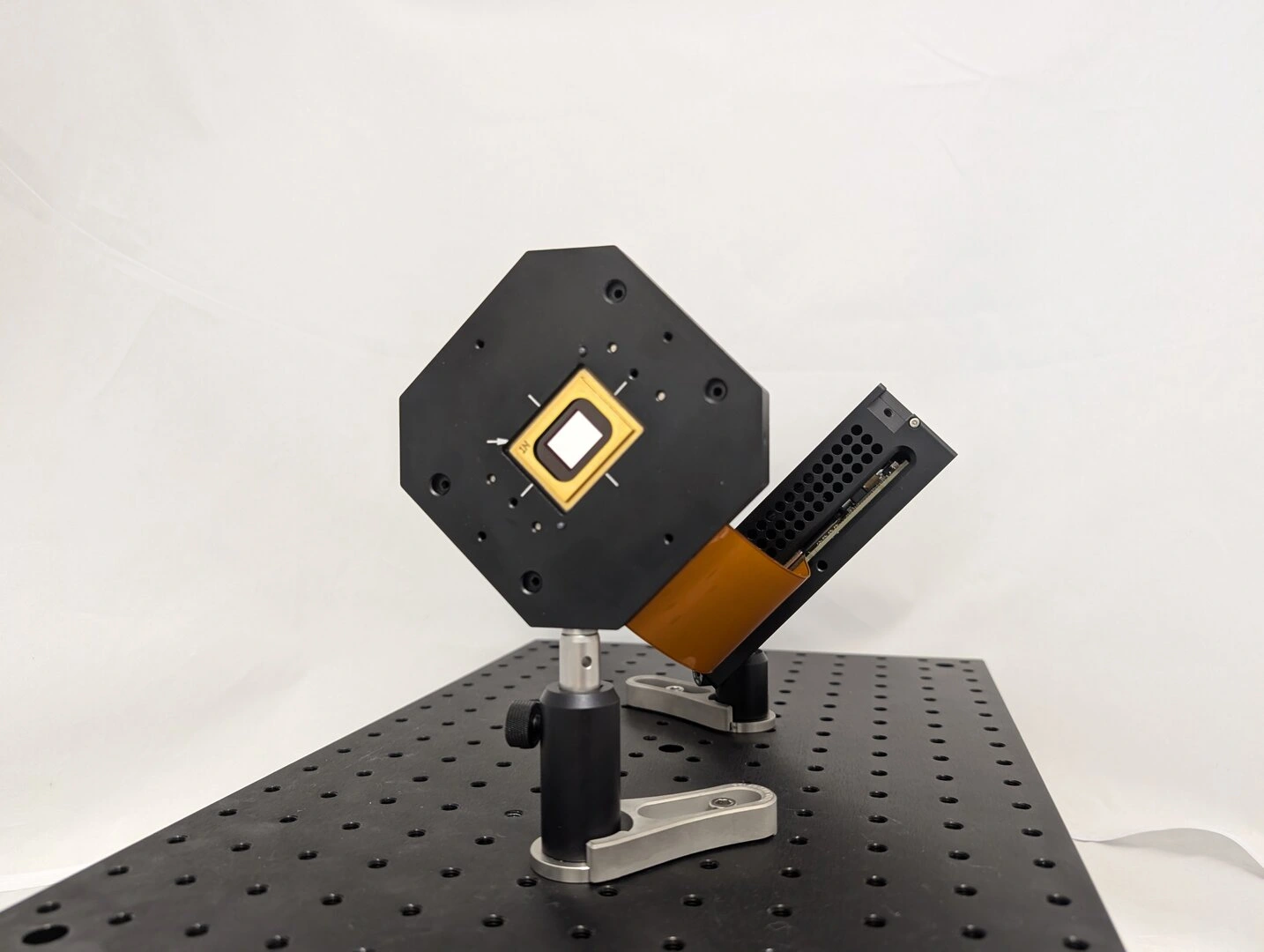

- Flexible mounting options – Perfect for prototyping, production, or custom assemblies thanks to its fully adjustable 45° mounting options

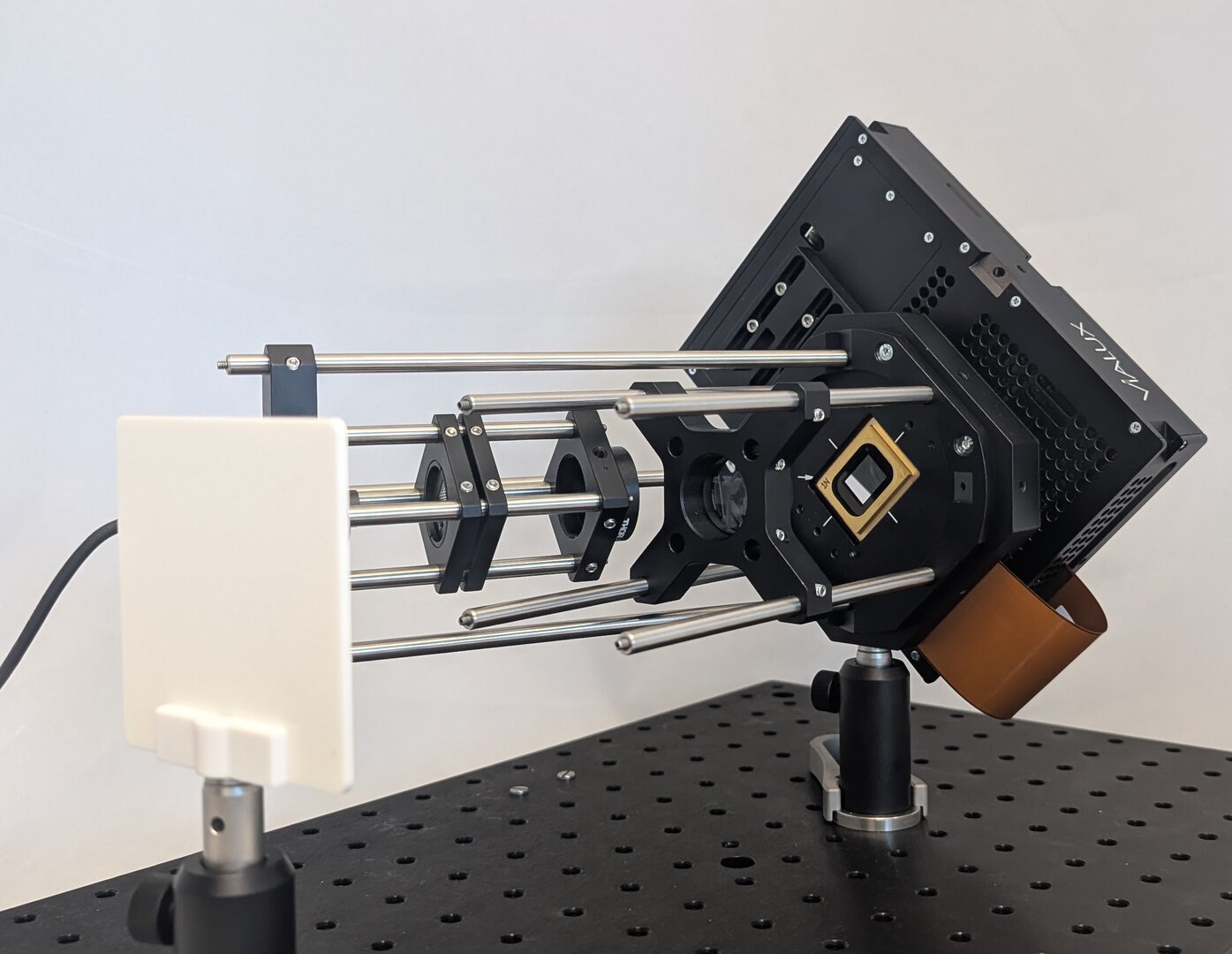

Configuration Examples*
*The additional optomechanical components are not included in the ViALUX LabKit. Only standard DMD boards are supported. Custom or special versions are not compatible.
Datasheet of ViALUX LabKit
