Spatial Light Modulators (SLM)
Structured Illumination by DLP® Technology
DLP® Projection Module PRIME VIS

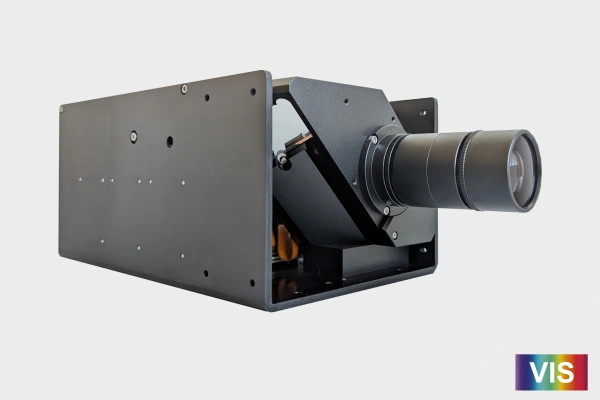

Industrial grade projection unit in an open housing.
On-axis representation with 0% offset
If you prefer alternative features, please select them in the form below. To receive a quote for the product with standard features, please fill out the contact data only and send us your request.
ViALUX PRIME VIS Request
PRIME VIS

- DLP® Projection Module

PRIME Specification

Optics
PRIME Core
Prisma/Illumination
Telecentric
On Axis, 0% offset
Wavelength
420 - 680 nm
405 nm limited possible
LED Driver
HLD2 (1x or 3x)
Cooling
Active Fan
Water cooling on request
Housing
Frame structure
Closed housing on request

Options

Projection Optics

StandardCustomized
Selection
Throw Ratio1.8TBD / Please contact us

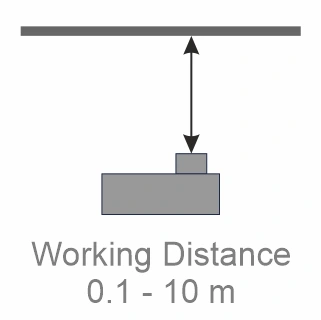

Working Distance0.1 - 10 mTBD

Light Source

MonoRGB
High Power Luminus LED1x2x / 3x
(405 nm)
460 nm
580 nm
620 nm
White

PC Interface

USB 3.0 PCIe + USB 3.0
PCIe Gen3 x4 		PCIe + USB 3.0
PCIe Gen3 x8
Selection
Software API
Controller Suite ALP-4.3 ALP-5.0 ALP-5.1
On-board RAM
8GB
16GB
32GB

DMD

DLP7000 DLP9500 DLP6500 DLP9000X DLP991U
Selection
DLP Format0.7"0.95"0.65"0.9"0.99"
Micromirror Array1 024 x 7681 920 x 1 0801 920 x 1 0802 560 x 1 6004 096 x 2 176
Micromirror Pitch13.7 µM10.8 µM7.6 µm7.6 µm5.4 µm
DMD Switching Rate (max.)22 727 Hz17 857 Hz10 309 Hz12 987 Hz11 272 Hz
PC Transfer Rate [fps] USB3.02 800 - 5 3001 000 - 2 5001 000 - 2 500600 - 1 500250 - 600
PC Transfer Rate [fps] PCIe28 50010 10010 400 4 9004 500

For more details, please review the Technical Specification Sheet.

Camera Port (DLS ready): on request(only with PCIe Interface)
