Efficient Synchronization with the DLS concept - ViALUX V-Cam
Originally developed for ViALUX 3D scanners, the innovative Direct Link Sensor (DLS) concept enables precise synchronization of DLP® projection and image acquisition within a single FPGA logic. This proven technology has already demonstrated its reliability in hundreds of real-world applications.
Of course, the DLS components are also available at the module level, allowing for more flexible user configuration. DLS is supported by the V‑7001+ (two cameras) and all UltraSpeed V-Modules (one camera). Various V-Cams sensor modules based on Sony CMOS image sensors are also available.
V-Cam | CMOS Sensor | Pixelsize | Megapixel | 10-bit Full Resolution |
V-Cam 174 | IMX174 | 5.86 µm | 2.35 MP | 164 fps |
V-Cam 421 | IMX421* | 4.5 µm | 2.83 MP | 143 fps |
V-Cam 422 | IMX422 | 4.5 µm | 2.01 MP | 194 fps |
V-Cam 425 | IMX425* | 9 µm | 1.76 MP | 213 fps |
V-Cam 426 | IMX426* | 9 µm | 0.5 MP | 622 fps |
V-Cam 535 | IMX535* | 2.74 µm | 12.28 MP | 49 fps |
V-Cam 536 | IMX536* | 2.74 µm | 8.06 MP | 70 fps |
V-Cam 537 | IMX537* | 2.74 µm | 5.01 MP | 107 fps |
* on request | ||||
V-Cams are ready for use and come with a suitable cable for connecting camera and V-Module. The ViALUX DLS-API, of course, supports the V-Cam’s seamlessly.
Application Example

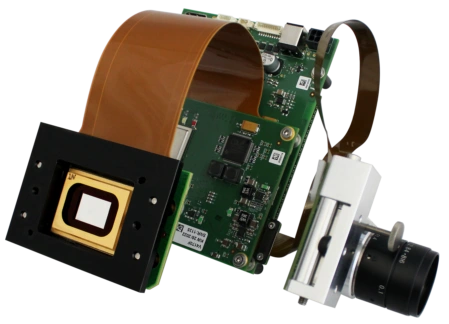

V-7001+ with V-Cam
