Accessories for Optics

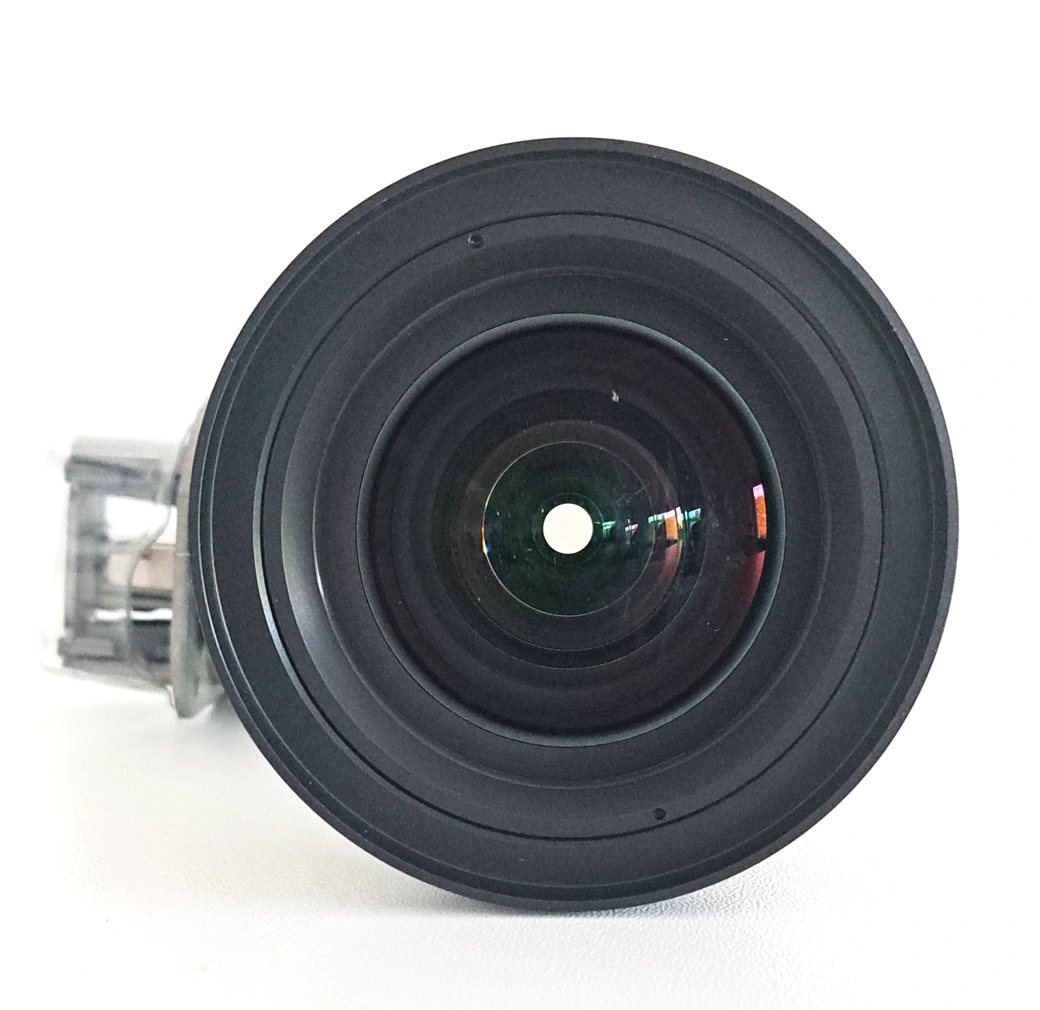

ViALUX Wide Angle Lens
Capture More. Create Bigger – ViALUX Wide Angle Lens
Designed as a dedicated accessory for the STAR Core, the ViALUX Wide Angle Lens extends the field of view for large-scale and wide-area projection tasks. It is developed for the 405 - 700 nm spectral range,
enables accurate, distortion-minimized imaging across the entire visible spectrum.
Its compact, robust design makes it easy to integrate into applications requiring maximum coverage without compromising image precision, from structured light projection to complex industrial visualization.
Key Features:
- Homogeneous DMD illumination
- Aperture f/2.6…f/2,9
- Throw ratio: 0.9
- Zoom: none
- Distortion < 5.5 %
- Working distance 0.5 m - 2 m
- Contrast ratio FOFO 2000:1
- Homogeneity +23% / -26% (IEC)
Application Example

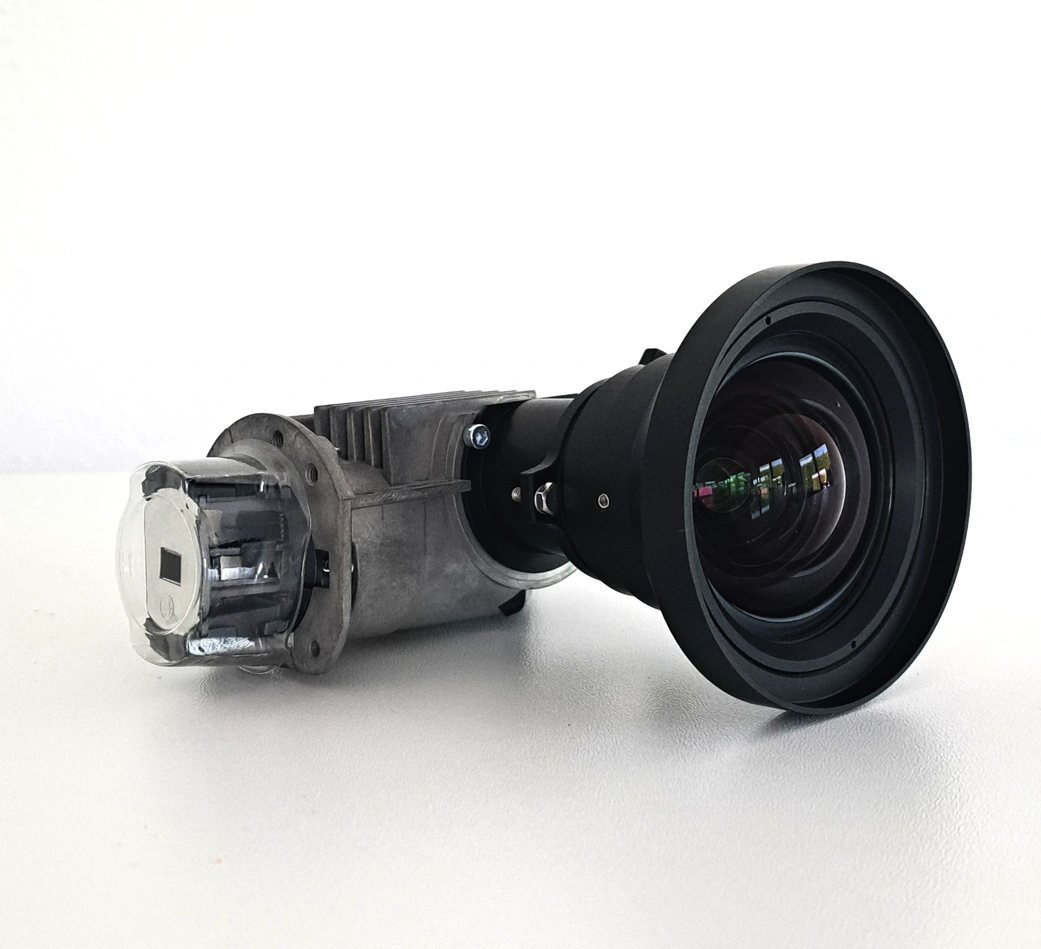

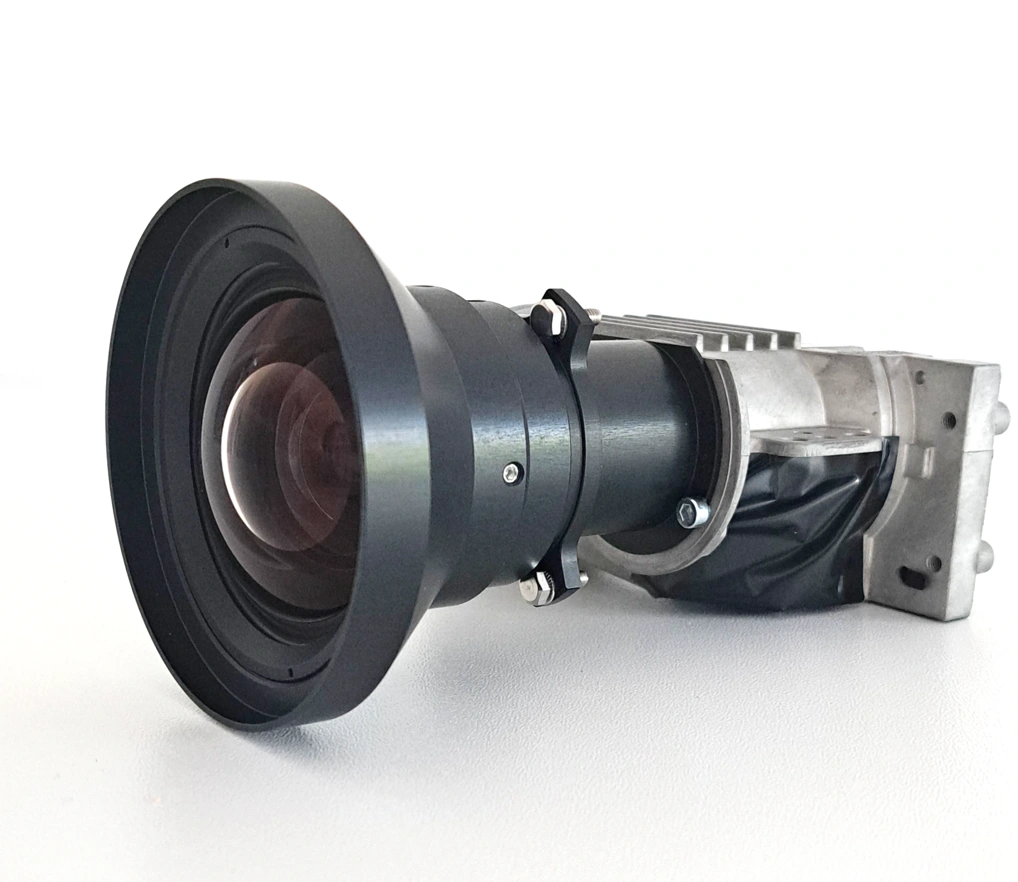

STAR Core with ViALUX Wide Angle Lens
