Essential Add-Ons for V-Modules
Various flexible cable lengths for optimal adaptation to your installation
ViALUX V-Flex
By default, the V-Modules
are equipped with the shortest possible flex cables connecting the controller
and the DMD board. These flex cables are, however, interchangeable and
replaceable. In principle, the modules can also be supplied with flex cables in

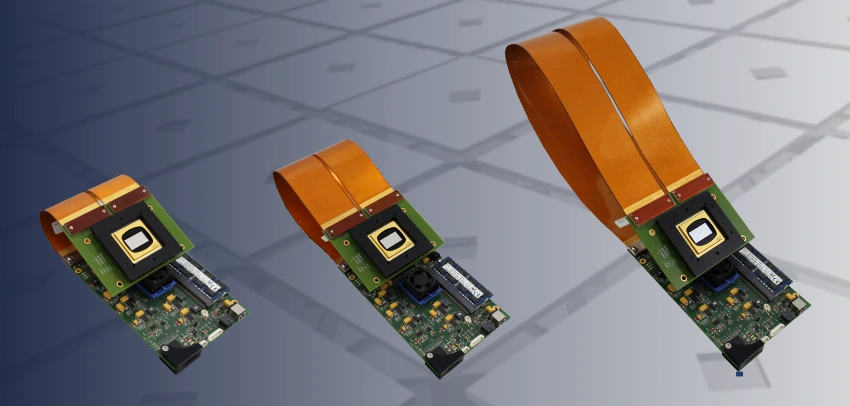

longer versions. Three standard cable lengths are available to optimally meet
the requirements of your installation situation.
- 105 mm (4.1“) flex cable connection
- 283 mm (11.1“) flex cable connection
- 573 mm (22.5“) flex cable connection
The table below provides an overview of which flexible cables are required in what quantities for which V-Modules. Flexible cables can also be supplied in lengths other than those specified here on request.
Flex Cable Length | V-7001 V-7002 | V-9501 V-9502 | V-6501 V-6502 | V-9001 V-9002 @ 400 MHz | V-9001 V-9002 @ 480 MHz | V-9001c V-9002c @ 400 MHz | V-9001c V-9002c @ 480 MHz | V-650L V-650L02 |
Required Cables per V-Module | 1 | 2 | 1 | 2 | 2 | 2 | 2 | 1 |
105 mm (4.1") | x | x | x | x | x | x | ||
283 mm (11.1") | x | x | x | x | (x) | x | x | x |
573 mm (22.5 ") | x | x | x | x¹ | x¹ | x | ||
x qualified | ||||||||
(x) working in lab but not fully qualified, customer shall test under real operating conditions | ||||||||
x¹ with additional 5V power supply | ||||||||

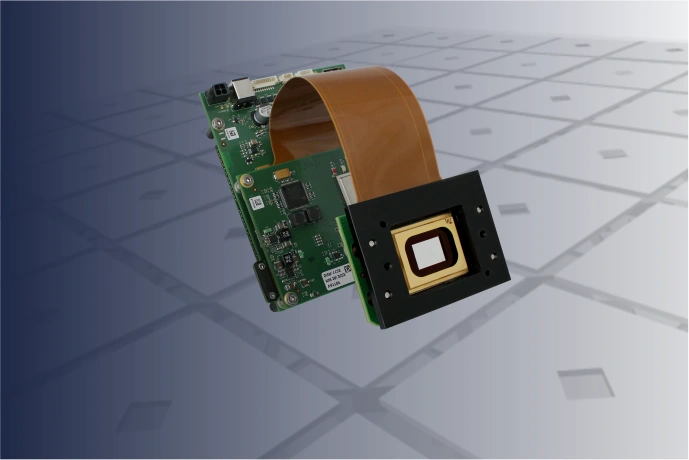

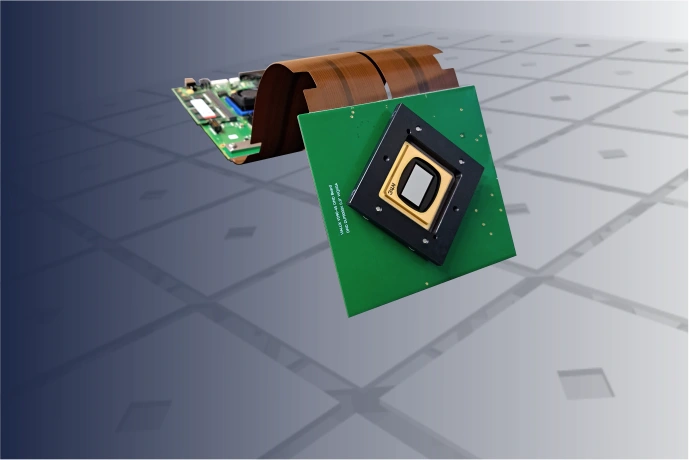

The circuit boards of the V-Modules V-7000,
V-7001+, and V-9001t are based on a rigid-flex design. This means that the flex
cables are not interchangeable, but part of the circuit board.
