Spatial Light Modulators (SLM) for Structured Light
Industrial Pattern DLP® Projection

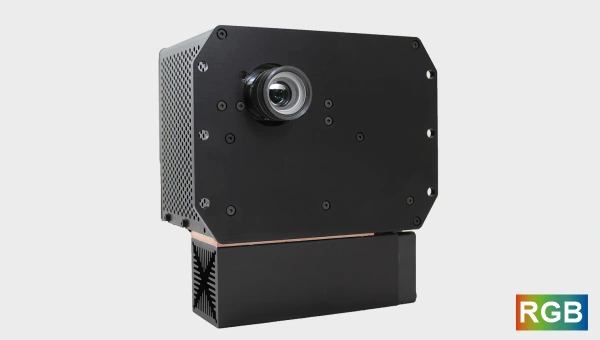

DLP® Projection Module STAR-07 2.0 Option RGB
DLP® Subsystem: | |
On-Board RAM Capacity (Binary Patterns): | |
Alternative: | 4 GB DDR2 (43 690) |
Optics: | STAR Core VIS (420 - 680 nm) |
Color Scheme: | RGB |
Light Source: | High-Power LED (VIS 450 - 620 nm) |
LED Driver | 3x HLD2 |
PC Interface: | USB 2.0 |
Software: | ALP-4.2 Controller Suite (API) |
Camera Port (DLS ready): | N.A. |
Housing: | Metal Housing, Industry Standard |
Cooling: | Active Fan |
If you prefer alternative features, please select them in the form below. To receive a quote for the product with standard features, please fill out the contact data only and send us your request.
Your Product - Standard Features
Projection Module STAR-07 2.0 Option RGB
- 2 GB DDR2 on-board RAM capacity
- STAR Core VIS Optics
- LED Light Source: 460 nm + 525 nm + 613 nm (PT-121-TE)
Datasheets of Projection Modules
- STAR-07 2.0 Option RGB (PDF)
- STAR-07 2.0 (PDF)
- STAR Core (PDF)
